PUREVA SMART CUBE™: Automated tabletop PUR glue binder

Automated perfect binder
PUR and EVA hotmelt glue
Hard and soft cover books (with optional hard cover toolkit)
Easy to use and easy to clean
User-friendly colour touch-screen
Automated roughening, gluing and nipping
Safety light curtains
Compatible with: Fastbind Case Makers, Fastbind Creasers, Fastbind Presso

Click here for ONE Sense Optima technical leaflet in PDF

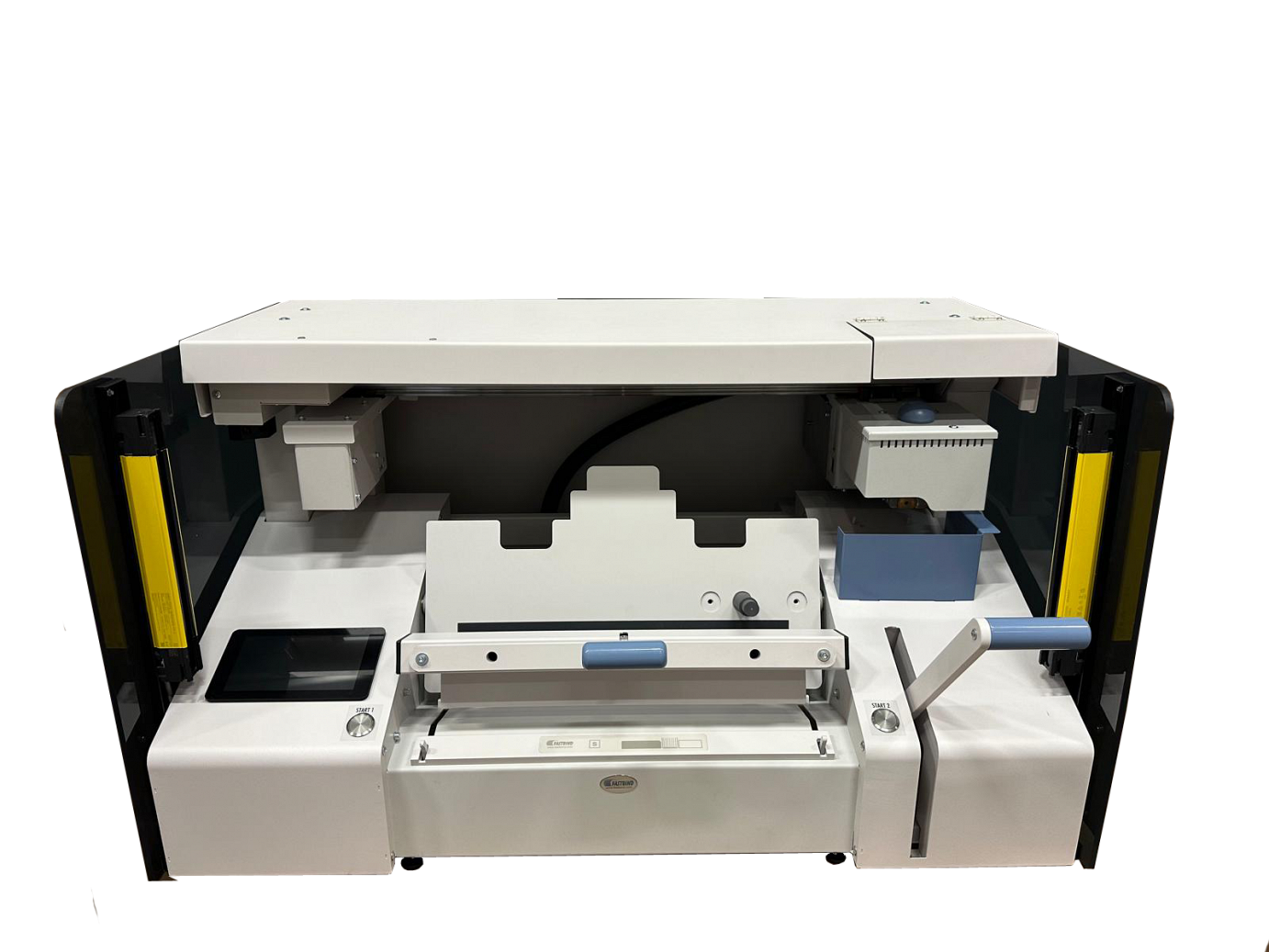

Fastbind Pureva Smart Cube is a compact and safe perfect binder able to bind soft or hard cover books up to A3 portrait.

Fastbind Pureva Smart Cube is a perfect binder able to bind soft or hard cover books up to A3 portrait. Thanks to its electronic temperature control, it can use different types of hot glues, including polyuréthane (PUR) and ethylene-vinyl acetate (EVA) adhesives.

Fastbind ensures the best possible binding quality in its range with EVA glue. Moreover, PUR glue guarantees an extraordinary binding strength to your works with thick books and difficult papers.

Features

Color touch-screen control panel

7-inch color touch screen

PGO Microcut spine roughener

Automatized Microcut Roughener

Smart automation

The binding process is further eased by a clever use of automation. The operator controls all the critical steps to make a good quality book. Roughening, gluing and nipping functions are automated for precision, consistency, ease and user comfort. Pureva Smart Cube calculates automatically the optimal pressure, speed and number of cycles for the roughening and gluing steps, as well as the nipping time for each book according to format, thickness and cover type. It has been designed to ensure the best possible binding quality.

Designed for digital environment

Compact, silent, clean, and very safe, the fully equipped Fastbind Pureva Smart Cube fits in any modern digital printing environment or shop. Reliable and robust, it guarantees quality and productivity for a budget-friendly investment, for all your on-demand and short to medium runs finishing needs.

The operator input the parameters for the book with predefined programs via the intuitive user interface on a 7” color digital touchscreen: type of cover, type of paper, format. With this information, the machine self-adjusts to create the best possible binding.

With its cleaning setting, Pureva Smart Cube needs only a few minutes to empty and clean its PUR glue tank. The cleaning operation is mess-free, fast and simple.

Technical specifications

	Europe / U.S.A.
Capacity soft cover	Up to 180 books per hour*
Capacity hard cover	Up to 90 books per hour*
Min/max binding thickness	0.1–45 mm / 0.1-1.9 inches
Max. binding length	Up to 455 mm / 17.9 inches
Max. binding height	Up to 335 mm / 13 inches
Max soft cover thickness**	Up to 400 g/m²
Voltage (V) / Frequency (Hz)	110-120/220-240 VAC / 50-60 Hz
Max. current	8 A
Machine dimensions (W x D x H)	1110 x 640 x 620 mm / 43.7 x 25.2 x 24.4 inches
Weight	120 kg / 419 lbs
Optional accessories available:
Fume extraction	Purex fume extractor and filters
Hard cover toolkit	Paper guide + nipping bar
Stand	Stand cabinet with storage
Approvals	CE
* output rate depends on operator, book type, selected cover and glue type ** depending on material properties Product information as of August 2024 and subject to change without notice.
