Fastbind ONE Handy XXL™: A3 manual glue binder for soft and hard covers

Large Format Perfect Binder Fastbind ONE Handy XXL

Manually operated perfect binder
For paperbacks and hardback books
Affordable, compact and easy to use
No adjustments between books - up to 50 mm
Up to A3 portrait or landscape
Up to 1000 books per day
Desktop or stand-alone
Modular: you can add hard cover toolkit, roughener, PUR kit or a stand.
Compatible with: Fastbind Case Makers, Fastbind Creasers, Fastbind Presso, Fastbind Pressomatic

Fastbind ONE Handy XXL is the ideal binding solution in a digital setting. Highly flexible, this manual perfect binder quickly binds hard and soft cover books as well as tear-off pads or binding stripes.
ONE Handy XXL binds all formats up to A3 portrait or landscape and 50 mm thick without any adjustment between jobs. It can bind with traditional EVA hotmelt glue or PUR. PUR operations are easy, fast, quiet and the cleaning takes only minutes. The end result is a perfect binding that is strong, square and affordable. Its modern and ergonomic design fits in any environment from a copy shop to a print room. It is quiet, safe, clean, odorless, emissions free with minimal power consumption.

Click here for ONE Handy XXL technical leaflet in PDF

All Video Share - Gallery_One-handy-XXL

ONE Handy XXL - Hard cover Venice

Features

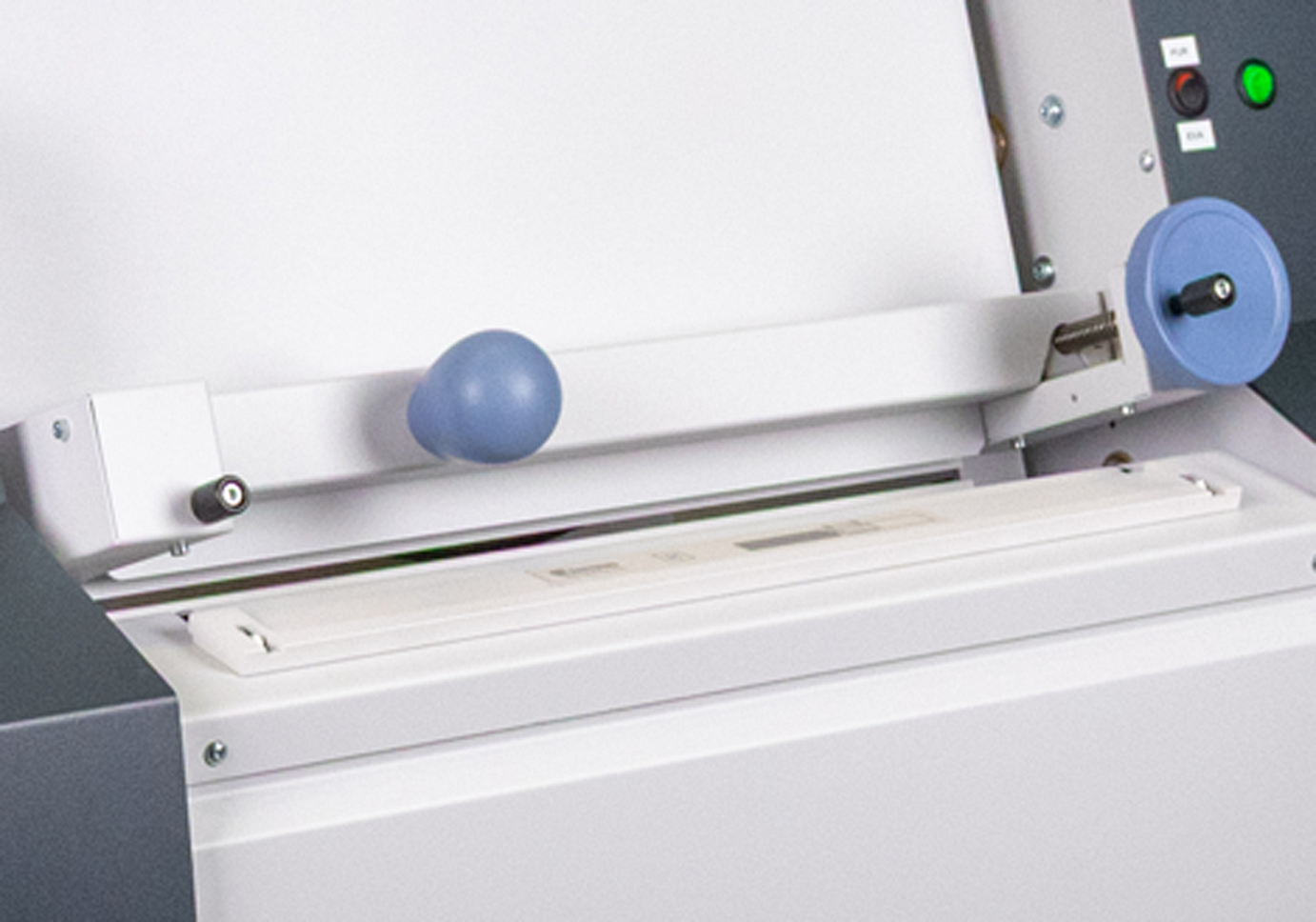

Sesame system for better access to the book block

Sesame system for easy access

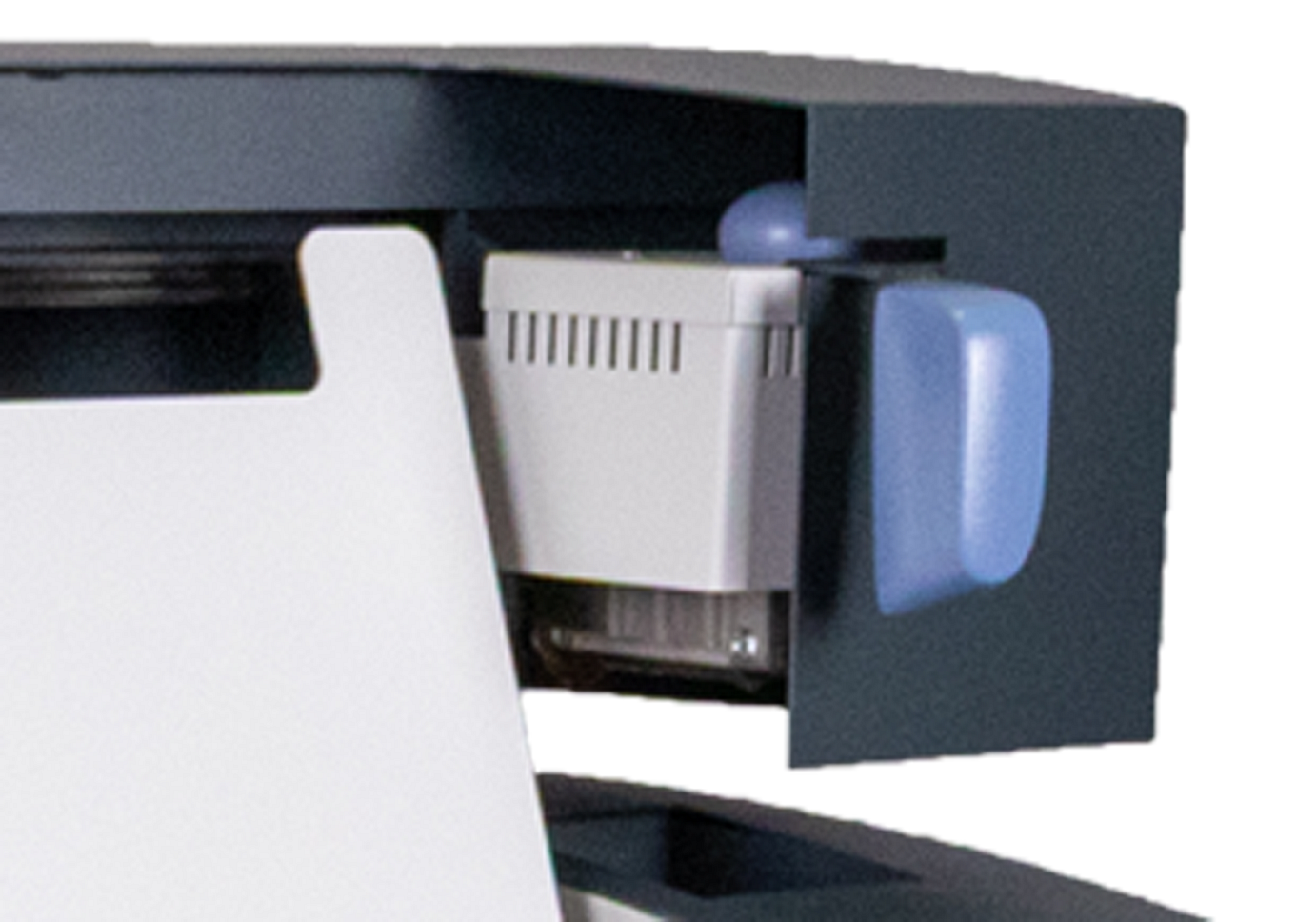

Safe glue roller

Safe glue applicator

Easy to use

Fastbind ONE Handy XXL is ready to bind in less than 15 minutes from switch on and does not require daily cleaning with EVA hotmlet glue. Draining and cleaning of PUR glue takes under 10 minutes. Anyone can learn to use it in minutes.

Compact and fully featured

Designed and manufactured in Finland, Fastbind ONE Handy XXL is made to last, whether you make one or 1000 books a day. In serial production, you get a constant quality of binding, with a strong and perfectly square spine each time.

Optional accessories

PGO Roughener

Gen 5 PGO Roughener

Hard cover toolkit

Roughener

The optional new roughener PGO Gen 5 is a great tool for the spine preparation with difficult materials like thick or heavily coated papers. It is easy to install and transforms instantly an office binder into a professional device with the best binding strenght.

Hard Cover Toolkit

This kit includes a nipping bar and a special paper guide. The shape of the bar forms perfect grooves in the hard cover and gives a professional look to the finished book. The guide allows a regular offset of the content inside the cover.

Specifications

	Europe / U.S.A.
Capacity soft cover books/hour*	180 books/hour (cycle speed: 240 cycles/hour)
Capacity hardcover books/hour*	90 books/hour (cycle speed: 120 cycles/hour)
Min-max binding thickness	0.1–50 mm / 0.004–2 inches
Max. binding length	Up to 470 mm / 18 inches
Max. binding height	Up to 470 mm / 18 inches
Max cover thickness **	400 g/m² / 225 index
Voltage	220–240 V / 110–115 V
Frequency	50–60 Hz / 50–60 Hz
Current	3 A / 5.5 A
Machine dimensions (W x D x H)	962 x 645 x 685 mm / 38 x 26 x 27 inches
Net/gross weight	79 kg / 174 lbs
Approvals	CE
Optional accessories available:
Roughening unit	Yes, PGO Gen 5 (Paper Grain Opening)
Hard cover tool kit	Yes: 1bar + 1 guide
Ergonomic stand	Yes, stand with shelves and wheels for easy motion.
PUR adhesive cleaning kit	Yes, easy cleaning kit with safe disposable trays
PUR extraction kit	Yes, for connection to a fume extractor for cleaner air
* Production time depends on operator ** Depending on specification of material Design and specifications are subject to change without prior notice.
