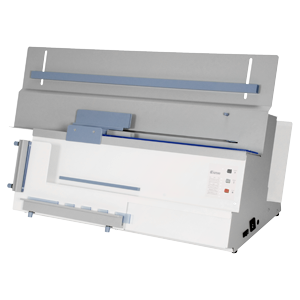

Fastbind BooXTer Trio™

Ergonomic and compact design
Semi-automatic operation
Binds any format up to SRA3
Compatible with: Fastbind Case Makers, Fastbind Creasers, Fastbind Presso

The semi automatic Fastbind BooXTer Trio™ utilizes the same concept, electronic stapling, as other BooXTer series machines but adds automation.

Features

booxter_trio_detail_1

Recognizes the sheet format automatically and places staples based on the selected program

Semi-automatic

The semi-automatic operation of BooXTer Trio™ simplifies your finishing process, making it ideal for serial production. Just place the paper block in the machine and press the start button. BooXTer Trio™ recognizes the sheet format automatically and accurately places staples based on the selected program (manual, single-sided, double side).

Accessories

BooXTer_trio_detail_2

Cover Setter in BooXTer Trio

OPTIONAL TOOLS AND ACCESSORIES

Cover Setter

The BooXTer Trio™ can be expanded with the optional Fastbind Cover Setter™. A positioning tool for adding hard covers to your paper blocks. The Fastbind Cover Setter™ can be mounted to BooXTer Trio™ or used as a standalone unit.

Specifications

	Europe / U.S.A
Binding method	Precision side stapling
Staple type ¹⁾	Flat clinch; 5000 staples per cassette Staple No. 10 for normal stock Staple No. 8 for coated stock
Standard cover options	Stripe backs, printed soft covers and binding without cover
Extended cover options	Standard and printed hard covers (cover setter sold separately)
Binding lenght	max 320 mm / 12.6 inches / no constraint with manual use
Binding thickness ³⁾	Normal stock up to 8 mm / 0.3 inches; coated stock up to 5 mm / 0.2 inches
Electrical specifications	100-240 VAC, 50/60 Hz, 1.3 A
Machine dimensions (W x D x H)	976 x 465 x 496 mm / 38.4 x 18.3 x 19.5 inches
Package dimensions (W x D x H)	1077 x 482 x 604 mm / 42.4 x 19.0 x 23.8 inches
Weight	Gross 29.8 kg / 65.7 pounds
Approvals	CE
1) One No. 10 cassette included 2) Time includes binding and cover mounting; actual capacity depends on operator 3) Maximum thickness depends on paper material properties Patents and design patents are pending for the BooXTer Trio™, end sheets and strips. Product information as of June 2010 and is subject to change without notice.
