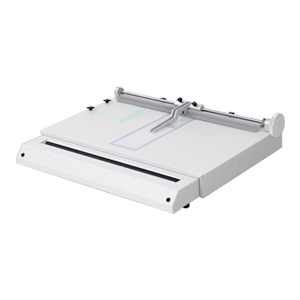

Fastbind Casematic XT™

On-demand case maker
Light table with guide line
Vacuum assistance
For books up to 352 x 455(spine)x 20 mm / 13.9 x 17.9(spine)x 0.8 inches
Compatible with Fastbind FotoMount, BooXTer and Hot Melt Perfect Binders

The Casematic XT represents a new step forward in the Fastbind range for on-demand hard cover making. In less than 1 minute you can be producing high quality books in a wide variety of formats, portrait or letter landscape. Once the cover is built, you can use a Fastbind binder to bind the content with either perfect binding,staple binding (BooXTer) , punch binding or free-floating spine (lay-flat).

Features

Built-in edge folding unit

Built-in light table

The unique card board positioning method makes it quicker than ever to register your board on the printed tacking cover: the light table includes a centre line, scaled and top line for the most accurate settings. A suction assistance for placing the tacking paper is controlled by a foot pedal.

Built-in edge folding unit

Fastbind Casematic XT also integrates a user-friendly edge-folding unit, with an adjustable roller gap for an easier operation.

Other applications

The original design of the Fastbind Casematic XT allow not only to create book covers, but any other fully decorated hard cases: CD and DVD cases, restaurant menus, and more.

Accessories

Corner cutter Ha10

Corner cutter

OPTIONAL TOOLS AND ACCESSORIES

Corner Cutter

The optional corner cutter allows you to cut the four corners precisely each and every time, no mistakes and no training required!

Side and Back Guide

The side and back guide makes registration of solid cover material, like material and leathers, easier in an on-demand finishing environment!

Extra Spine Guides

Extra spine guides increase the range of applications to include personalized CD and DVD cases, punch & bind hard covers, and more.

Specifications

	Europe / U.S.A.
Max tacking paper size (W x H)	750 x 476 mm / 29.5 x 18.7 inches
Max. folding length	750 mm / 29.5 inches
Max. book finished size	352 x 455(spine)x 20 mm / 13.9 x 17.9(spine)x 0.8 inches
Thickness of the cover	8 mm / 0.3 inches
Voltage	220–240 V / 110–115 V
Frequency	50 Hz / 60 Hz
Max Current	1 A / 2 A
Machine Dimensions (W x D x H)	1000 x 780 x 210 mm / 39.4 x 30.7 x 8.3 inches
Box dimensions (W x D x H)	1080 x 890 x 310 mm / 42.5 x 35.0 x 12.2 inches
Foot print	850 x 620 mm / 33.5 x 24.4 inches
Net/gross weight	43/72 kg / 95/159 lbs
Design and specifications are subject to change without prior notice.
